Step and Repeat Backdrop setup.

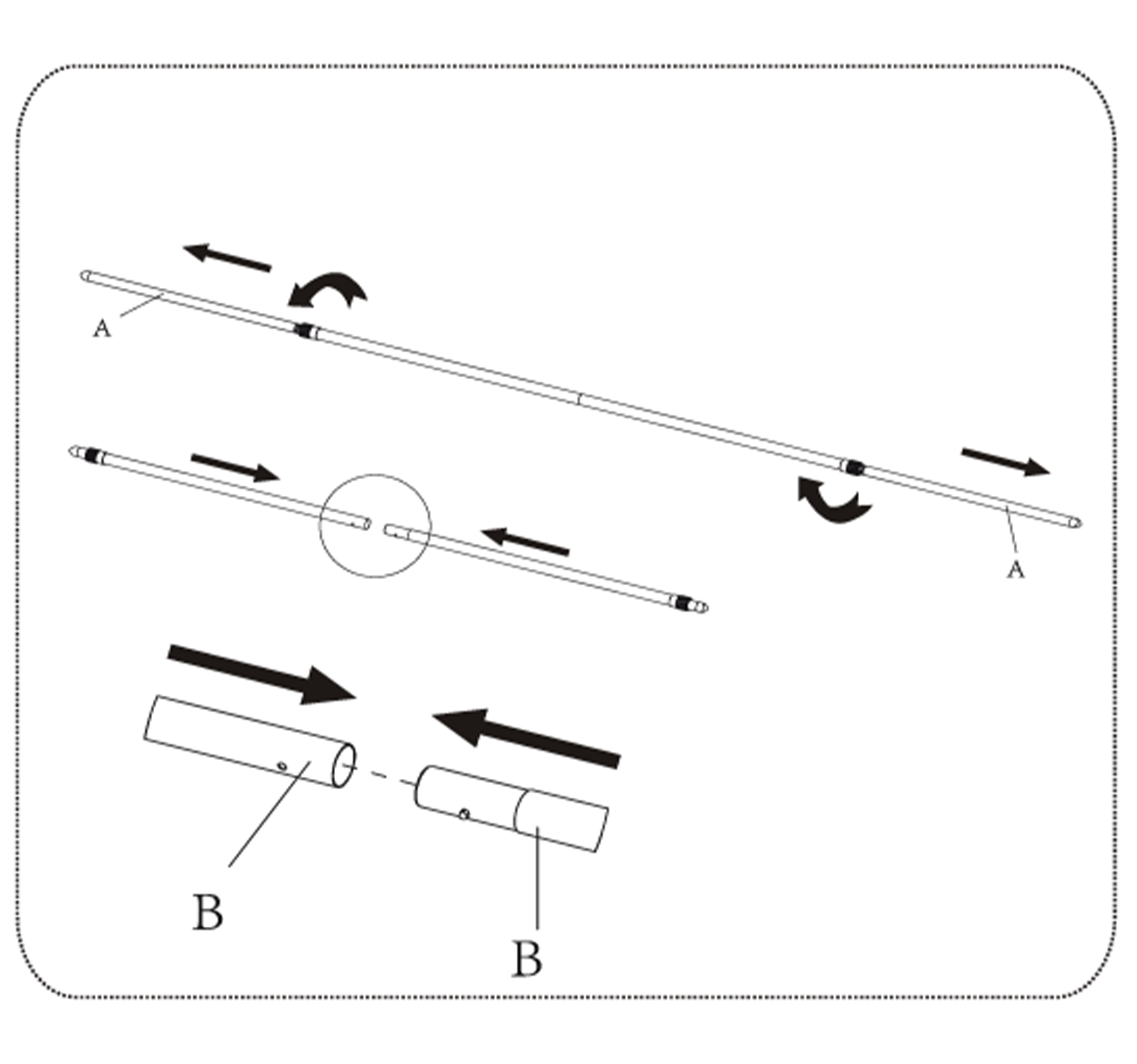

Step 1: Connect the two poles labeled #A-B by joining the B-B ends. Repeat with bottom poles #C-D. Extend telescopic ends A.

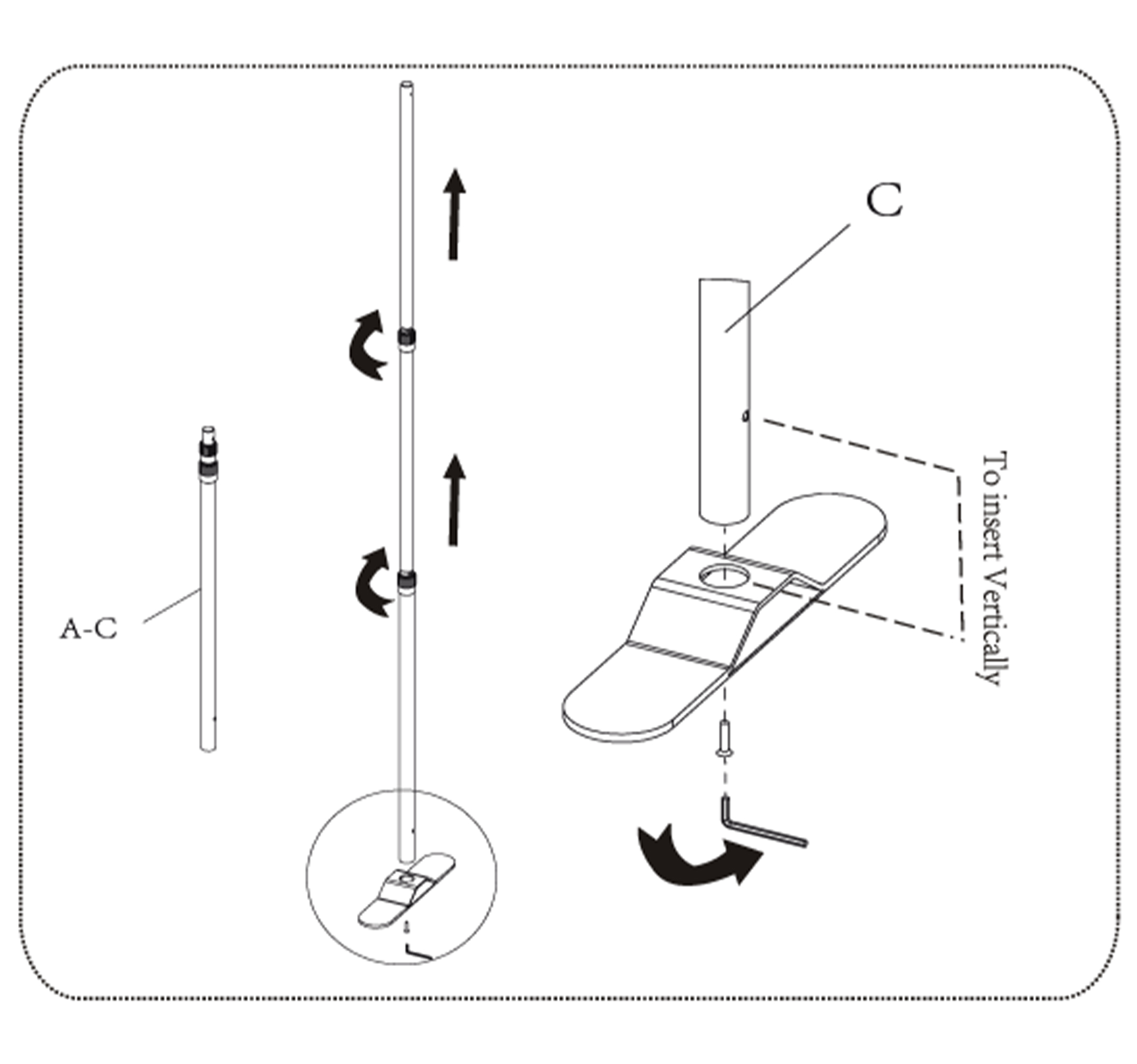

Step 2: Take vertical pole #A-C and insert end C into the pole socket in the base. From the bottom of the base thread hexbolt into end C and tighten.

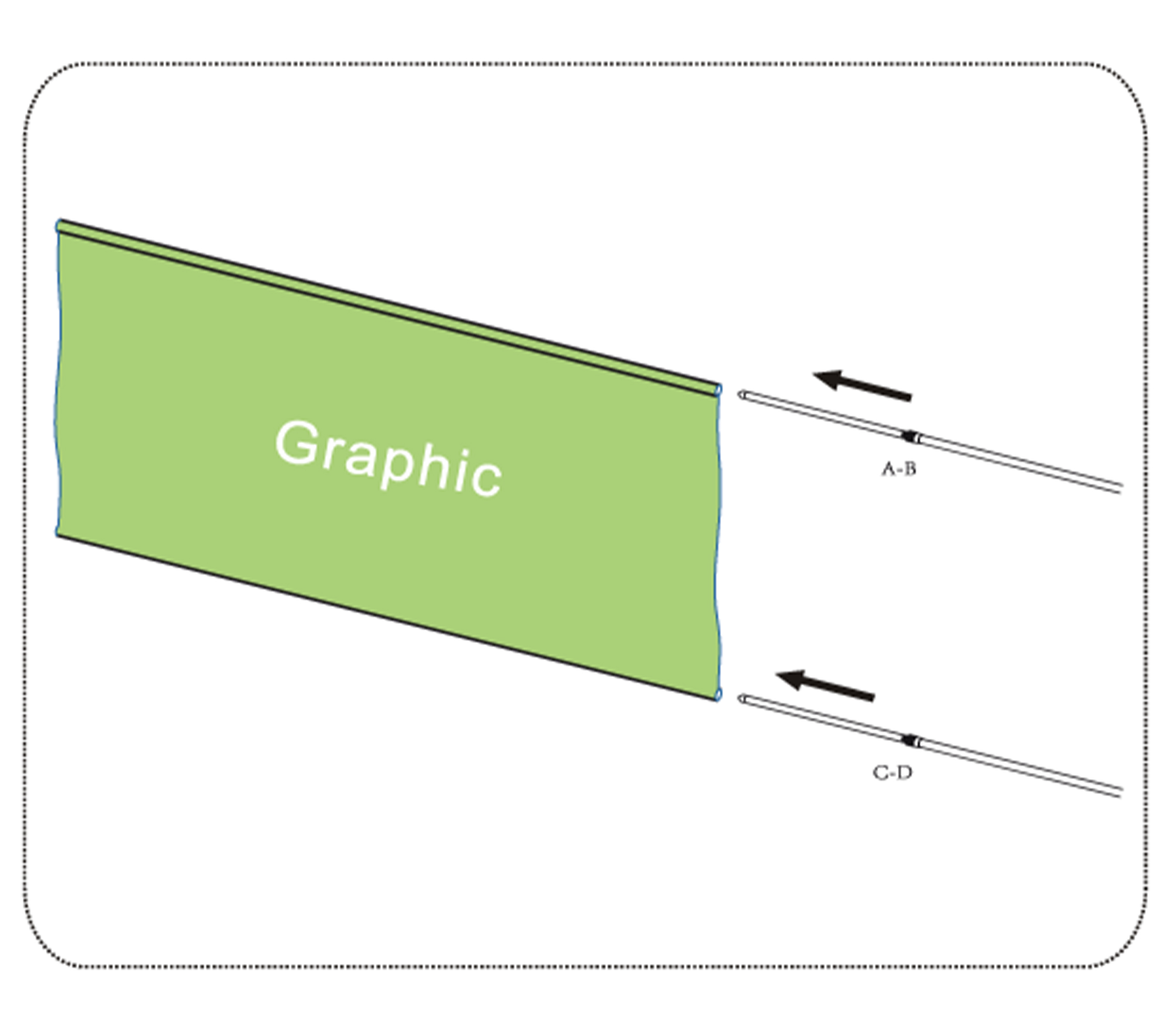

Step 3: Run poles #A-B and #C-D through the pole pockets on the top and bottom of the graphic.

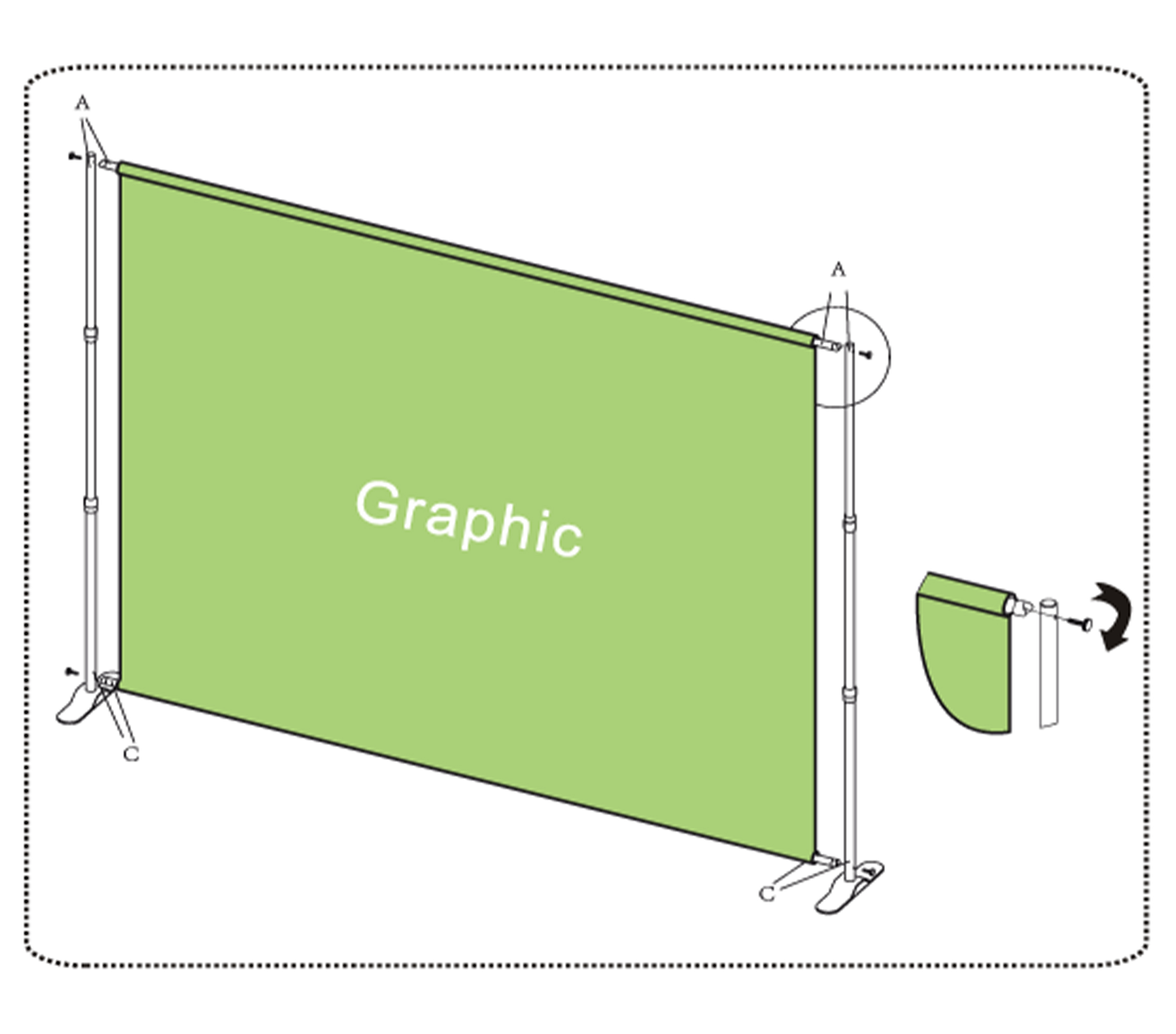

Step 4: Use the black handled thumb screws to secure the horizontal poles to the vertical poles.
